MaxiChamber 450

A 450mm inspection chamber system for 110mm, 150mm and 160mm underground drainage. Three base designs with risers cover shallow depths up to 1.2m, and a twinwall shaft takes the same system to 3m adoptable and 6m non-adoptable.

See the products
  • Made in Britain
  • BS ISO 9001:2015
  • TÜV Rheinland Certified
MaxiChamber 450
Why MaxiChamber 450

The MaxiChamber 450 gives you dependable access to underground drainage in a 450mm chamber, with a configuration for shallow and deep runs alike. Choose a 110mm, 150mm or 160mm chamber base to match your pipework, each moulded in recycled polypropylene. Every base includes blanking plugs for unused inlets and has a lightweight design, so handling and installation are straightforward without heavy lifting. A range of access covers lets you match the chamber to the project.

  • Lightweight and easy to handle

    Each component is easy to carry and position on site. The twinwall shaft is lightweight too, so deeper installs avoid heavy lifting.

  • Made from recycled polypropylene

    The bases and risers are moulded in recycled polypropylene, giving you the strength and durability underground drainage demands. It lets you specify a lower-impact product without compromising on long-term performance.

  • Choice of 110mm, 150mm or 160mm connections

    The 110mm base takes 110mm pipe with 45° and 90° side branches. The 150mm base takes 150mm twinwall pipe and the 160mm base takes 160mm pipe, each with a 45° x 110mm side branch and a 90° branch to match its pipe size. Blanking plugs are included for any unused inlets.

  • Watertight and secure

    Risers can be supplied with 450mm sealing ring to give a watertight system, and can be cut to your preferred height. Covers and frames are available in 15kN and 35kN, meaning you can match the cover to the loading at each location.

Shallow or deep?

MaxiChamber 450 shallow option

Shallow option

Components
Chamber base with riser sections
Maximum depth
1.2m (adoptable and non-adoptable)
Compliance
Tested to BS EN 13598-1Building Regulations Part H1SfA7 Type 4 (Wales)

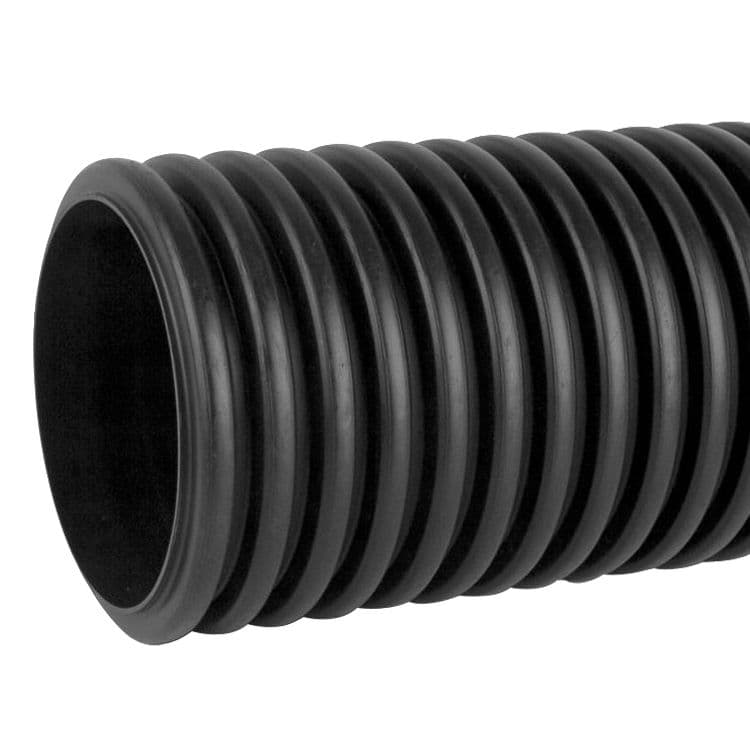

MaxiChamber 450 deep option

Deep option

Components
Deep inspection chamber with twinwall shaft
Maximum depth
3.0m (adoptable)6.0m (non-adoptable)
Compliance
Tested to BS EN 13598-2DCG 2020 Chamber Detail Types D and ESewers for Adoption 7th EditionBuilding Regulations Part H1
The MaxiChamber 450 range

Products

10 of 10 shown

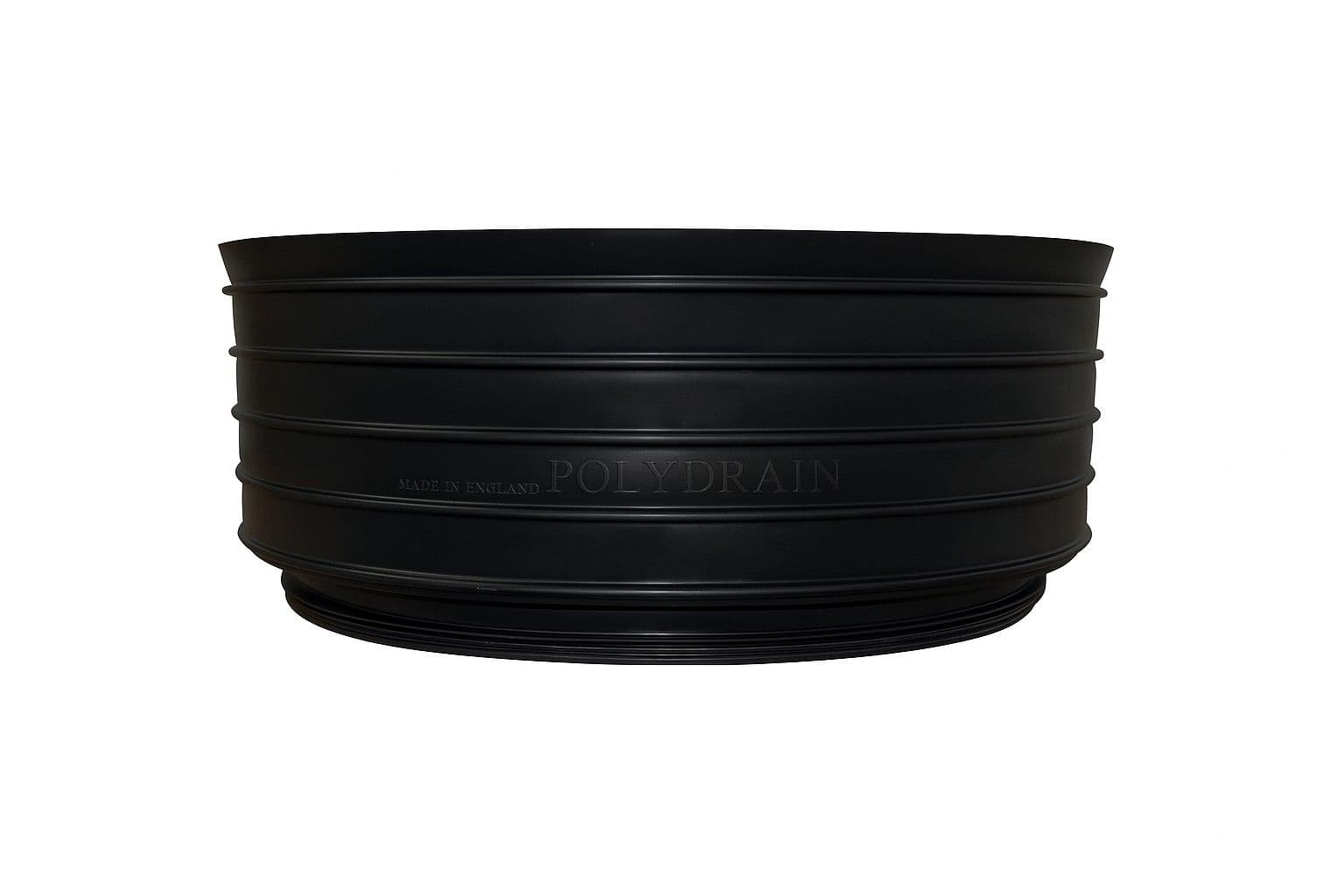

450mm DIA Inspection Chamber Twinwall Shaft Adaptor

450mm DIA Inspection Chamber Twinwall Shaft Adaptor

MCTA450

Nominal Diameter
521mm
450mm Twinwall Manhole Cover Adaptor

450mm Twinwall Manhole Cover Adaptor

TSA

Nominal Diameter
450mm

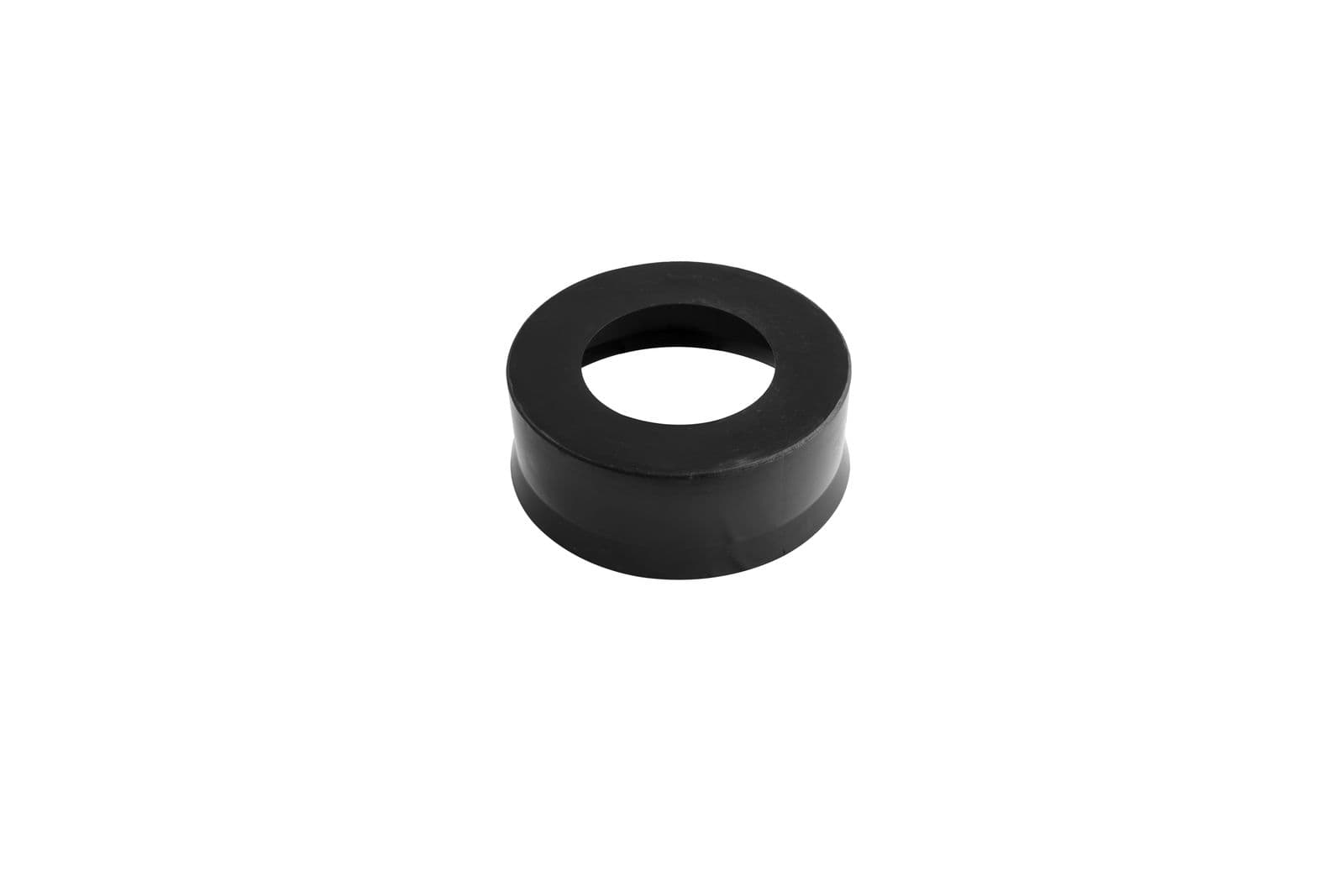

450mm/300mm DIA Reducing Ring

450mm/300mm DIA Reducing Ring

450/300RR

Nominal Diameter
450mm
450mm DIA Sealing Ring

450mm DIA Sealing Ring

S450

Nominal Diameter
450mm

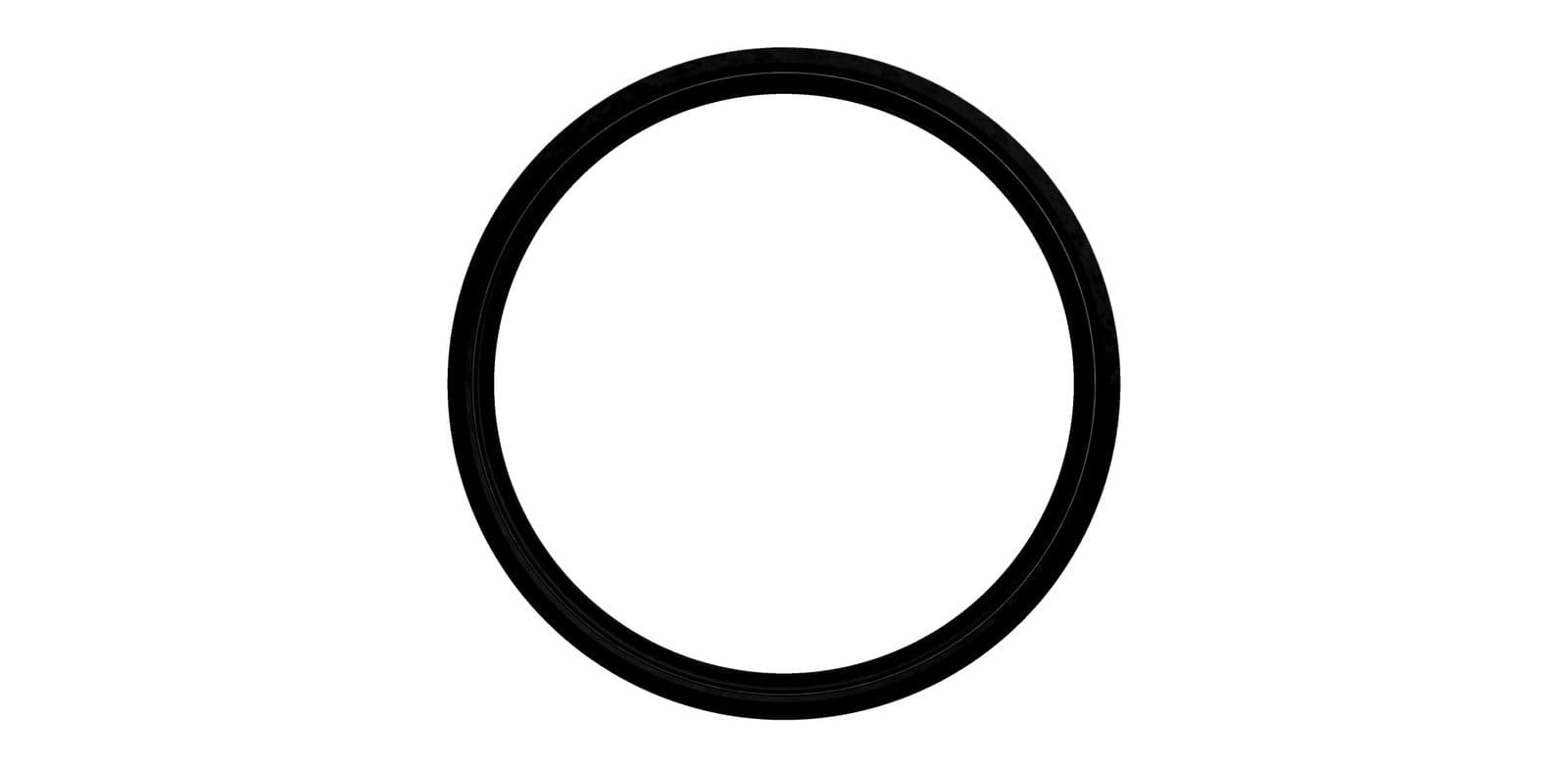

450mm DIA Twinwall Sealing Ring

450mm DIA Twinwall Sealing Ring

TWS450

Nominal Diameter
450mm

Specify MaxiChamber 450

Talk to our technical team about sizing, load class, lead times and pricing for your scheme.

Request a quote
