Silt Traps

Silt traps catch silt, grit and debris in a removable filter basket before it can settle further down the system. 320mm and 450mm chambers with 110mm or 160mm inlet and outlet, in 630mm and 825mm depths.

See the products
  • Made in Britain
  • BS ISO 9001:2015
  • TÜV Rheinland Certified
Silt Traps
Why Silt Traps

Silt traps drop sediment out of the flow before it reaches a tank, soakaway, flow control or outfall, and collect it in a filter basket that lifts straight out of the chamber. Instead of jetting or vacuuming a sump, maintenance is a matter of lifting the lid, pulling the basket and tipping it.

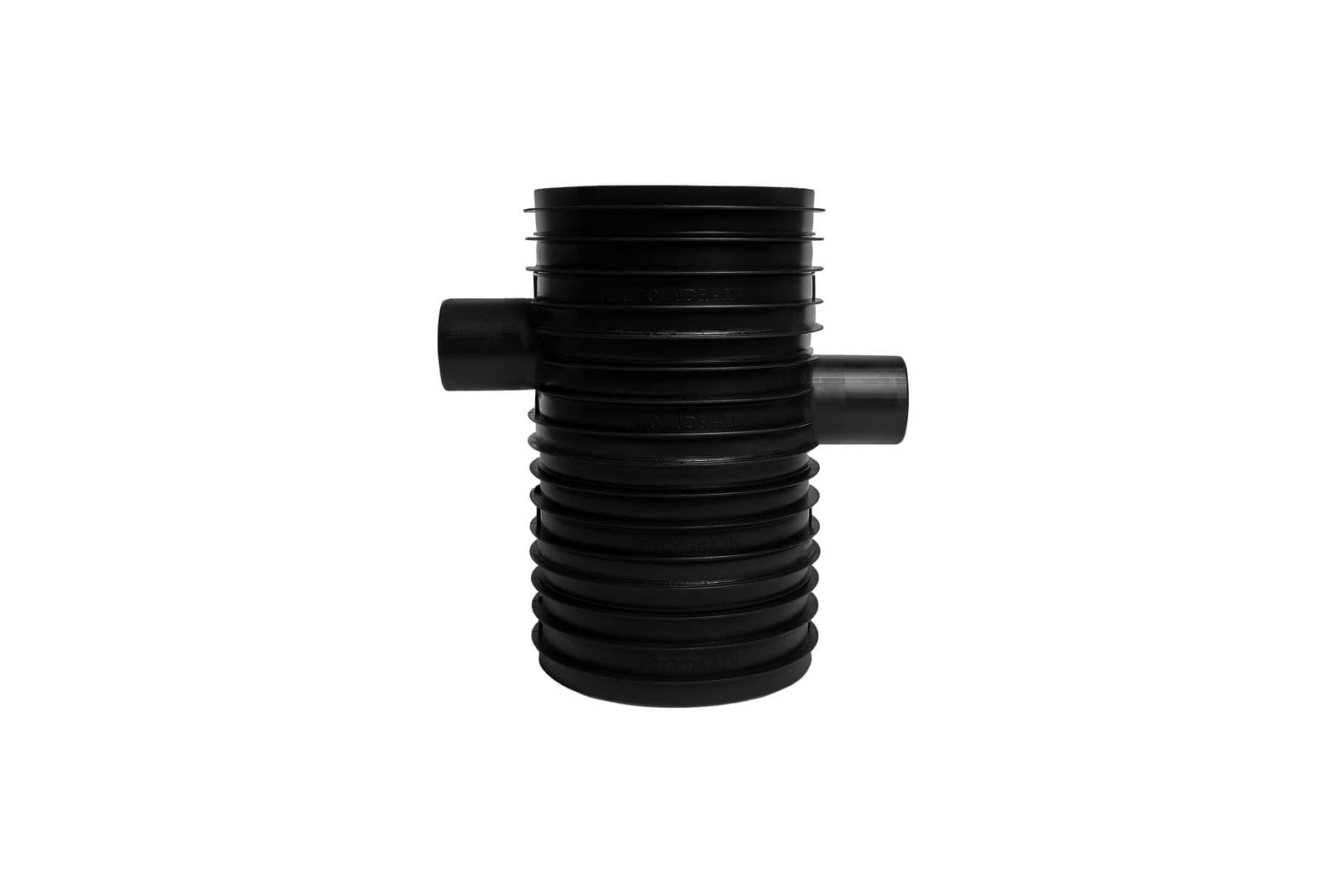

Three chambers cover the range. The 320mm silt trap is 630mm deep with a 260mm sump and 110mm inlet and outlet, sized for domestic driveways and gardens. The 450mm silt trap and 450mm advanced silt trap are 825mm deep with a 330mm sump and 160mm inlet and outlet, for larger plots and commercial schemes; the advanced version adds a finer mesh filter for sites where leaf litter or fine sediment is the problem.

Need a different depth or sump? Deeper chambers are built up on site with MaxiChamber risers, and non-standard depths, sump sizes and inlet positions can be fabricated to order in our West Bromwich factory. Talk to our technical team about what your scheme needs.

  • Lift-out filter basket

    Debris is removed by hand from the surface, with no jetting or specialist equipment.

  • Two chamber sizes

    320mm for driveways and gardens, 450mm for larger plots and commercial schemes.

  • Configurable to the pipework

    110mm or 160mm inlet and outlet as standard. Other depths and sumps are supplied with MaxiChamber risers or fabricated to order.

  • Part of the chamber system

    Takes the same MaxiChamber risers and covers, so one set of components finishes the job.

The Silt Traps range

Products

3 of 3 shown

Specify Silt Traps

Talk to our technical team about sizing, load class, lead times and pricing for your scheme.
