MaxiChamber 600

A heavy-duty 600mm inspection chamber for underground drainage, injection moulded from recycled polypropylene. It installs to depths of up to 6m, or 3m on adoptable sewers.

See the products
  • Made in Britain
  • BS ISO 9001:2015
  • TÜV Rheinland Certified
MaxiChamber 600
Why MaxiChamber 600

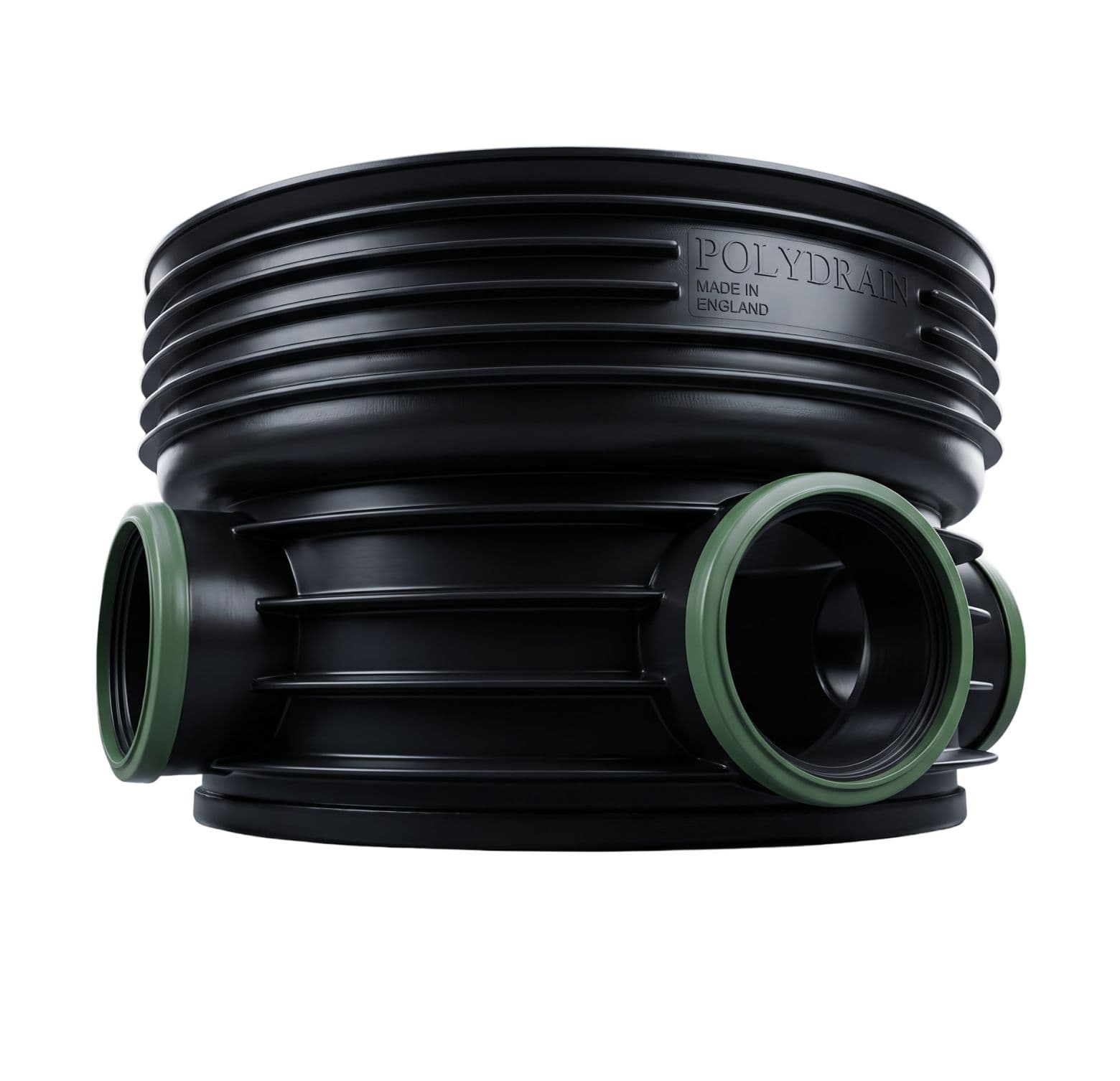

The MaxiChamber 600 is a heavy-duty inspection chamber, manufactured in West Bromwich from recycled polypropylene. It is supplied as a four-part system: the chamber base, sealing ring, twinwall shaft and 300mm reducing ring.

The base takes 160mm pipe directly, 150mm twinwall pipe with an adaptor, and 110mm pipe with a reducer, which we can supply. It is compatible with covers and frames rated up to D400, so you can match the chamber to the loading on site.

  • Deep access for heavy-duty use

    The 600mm diameter makes rodding, jetting and CCTV inspection straightforward. It installs to depths of up to 6m, or 3m on adoptable sewers.

  • Lightweight and quick to install

    The base is light enough to lower into the trench by hand, so no lifting equipment is needed. Pre-formed inlets and built-in benching also cut labour on site.

  • Blockage-resistant and watertight

    The shape of the benching prevents debris build-up, which reduces the risk of blockages. Pipes push-fit into rubber ring seals for a watertight joint.

  • Built to standard

    Manufactured to BS EN 13598-2 and meets Part H of the Building Regulations. For adoptable sewers, it complies with the Design and Construction Guidance in England, Sewers for Adoption 7th Edition in Wales and Sewers for Scotland.

Introducing the MaxiChamber 600

A heavy-duty 600mm inspection chamber, injection moulded from recycled polypropylene, for depths of up to 6m.
The MaxiChamber 600 range

Products

6 of 6 shown

600mm/300mm DIA Reducing Ring

600mm/300mm DIA Reducing Ring

600/300RR

Nominal Diameter
600mm
600mm DIA Twinwall Sealing Ring

600mm DIA Twinwall Sealing Ring

TWS600

Nominal Diameter
600mm

Specify MaxiChamber 600

Talk to our technical team about sizing, load class, lead times and pricing for your scheme.
