FA110

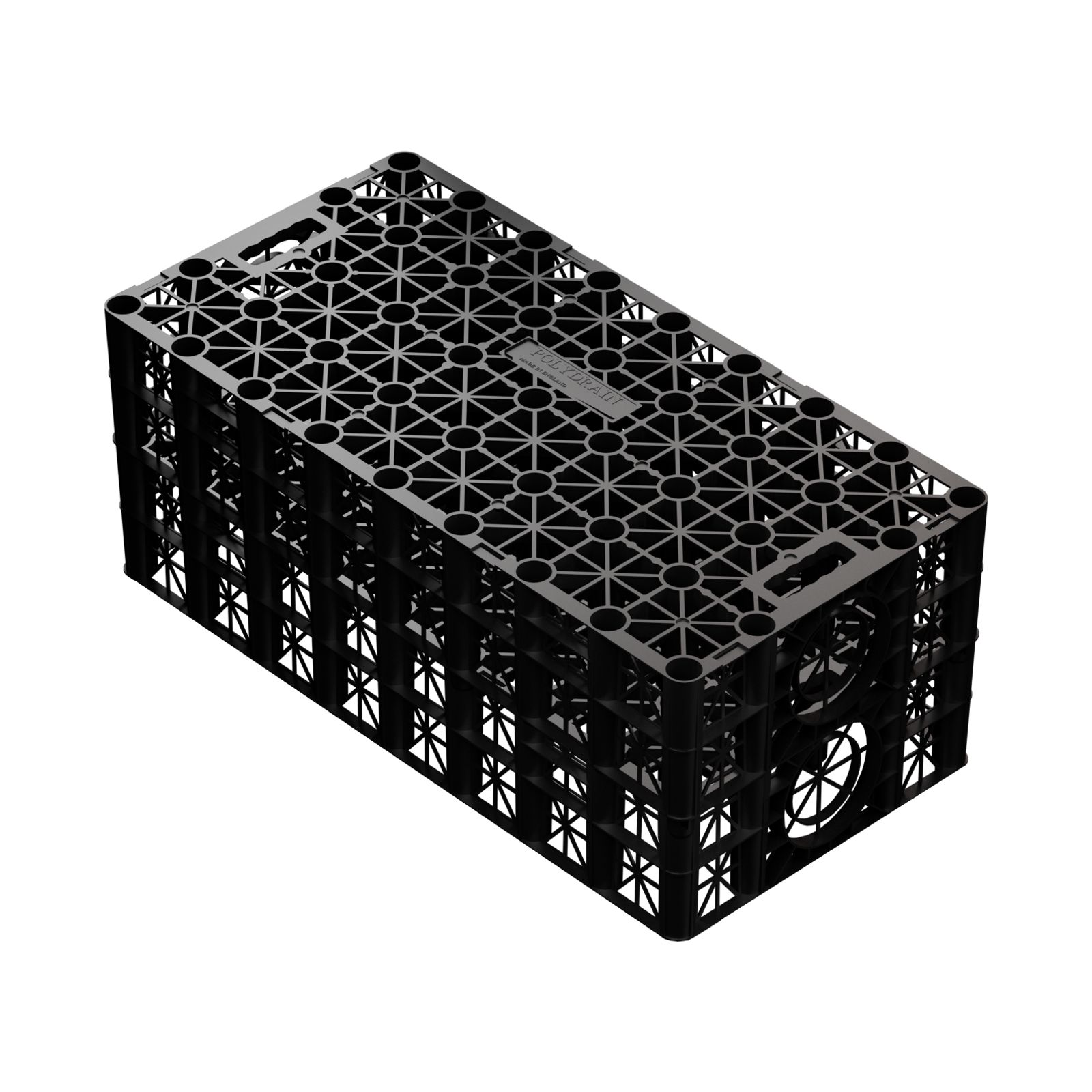

HydroCell Crate 620 KN/m2
HCC60
620 kN/m²Load rating
Downloads
Questions on sizing or load class? Our technical team is one call away on 0121 552 8887.
Where it's used
Application areas
- Gardens & landscaping
- Sports & leisure
- Housing developments
- Public realm
- Car parks & commercial
- Rail
- Forecourts
- Data centres & energy
- Industrial & logistics
- Airports & ports
- Water & flood schemes
Specifications
Dimensions & weight
- Length
- 1000mm
- Width
- 500mm
- Height
- 400mm
- Weight
- 12kg
- Volume
- 0.2m3
- Storage Volume
- 190 Litres (0.193m3)
Materials & standards
- Material
- Polypropylene
Loading & installation
- Load class
- 620 kN/m²
Connections & performance
- Void Ratio
- 95%
Key features
- Load-bearing strength 62 tonnes/m2
- 95% void ratio
- Retention, attenuation or infiltration with suitable geomembrane/geotextile
- Integrated inlet and outlet
- 100% recyclable
Specifications are for guidance. For load class selection, hydraulic design or scheme-specific advice, talk to our technical team on 0121 552 8887.
Download datasheet (PDF)Supporting
Accessories
FA150
150mm EN1401-1 Flange Adaptor

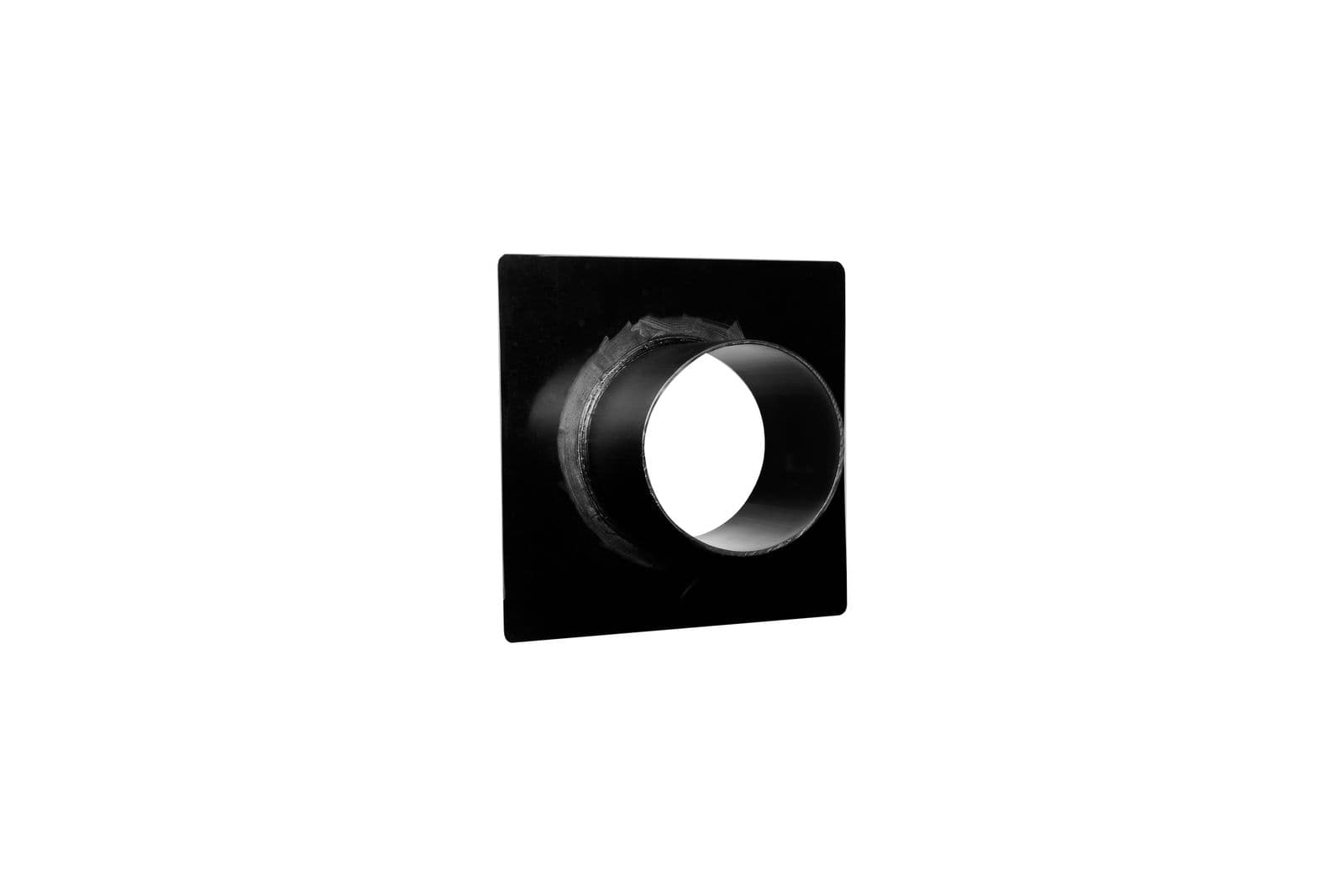

FA160
160mm EN1401-1 Flange Adaptor

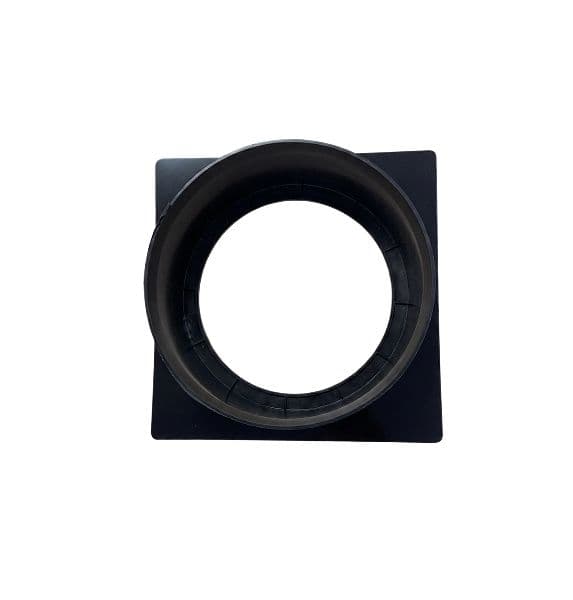

FA225
225mm EN1401-1 Flange Adaptor

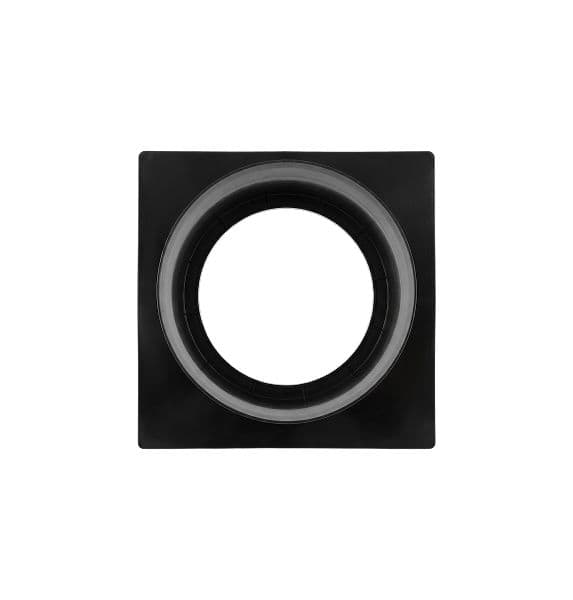

FA300
300mm EN1401-1 Flange Adaptor
HCSC
HydroCell Shear Connector
Specify HydroCell 60
Talk to our technical team about sizing, load class, lead times and pricing for your scheme.
